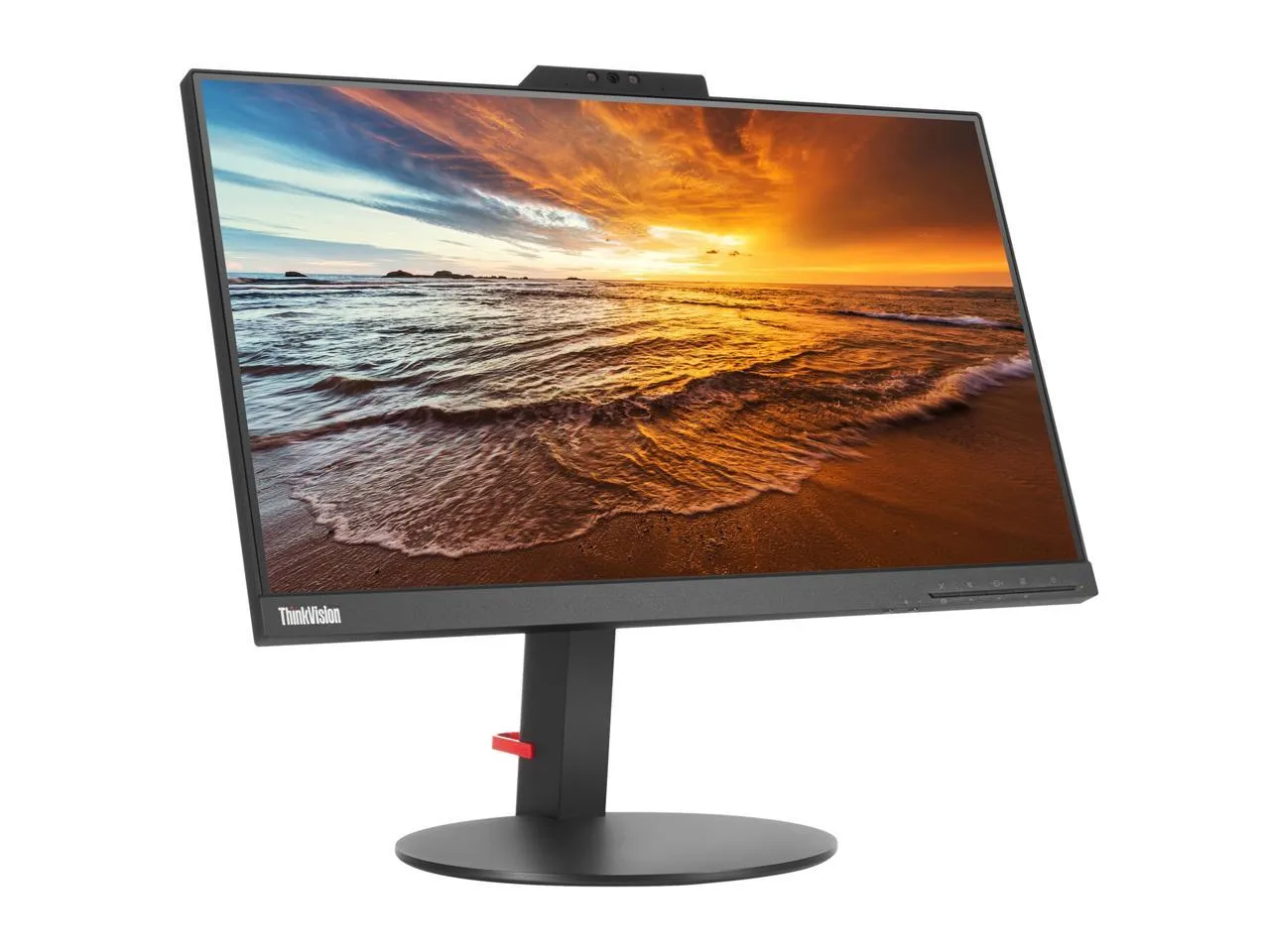

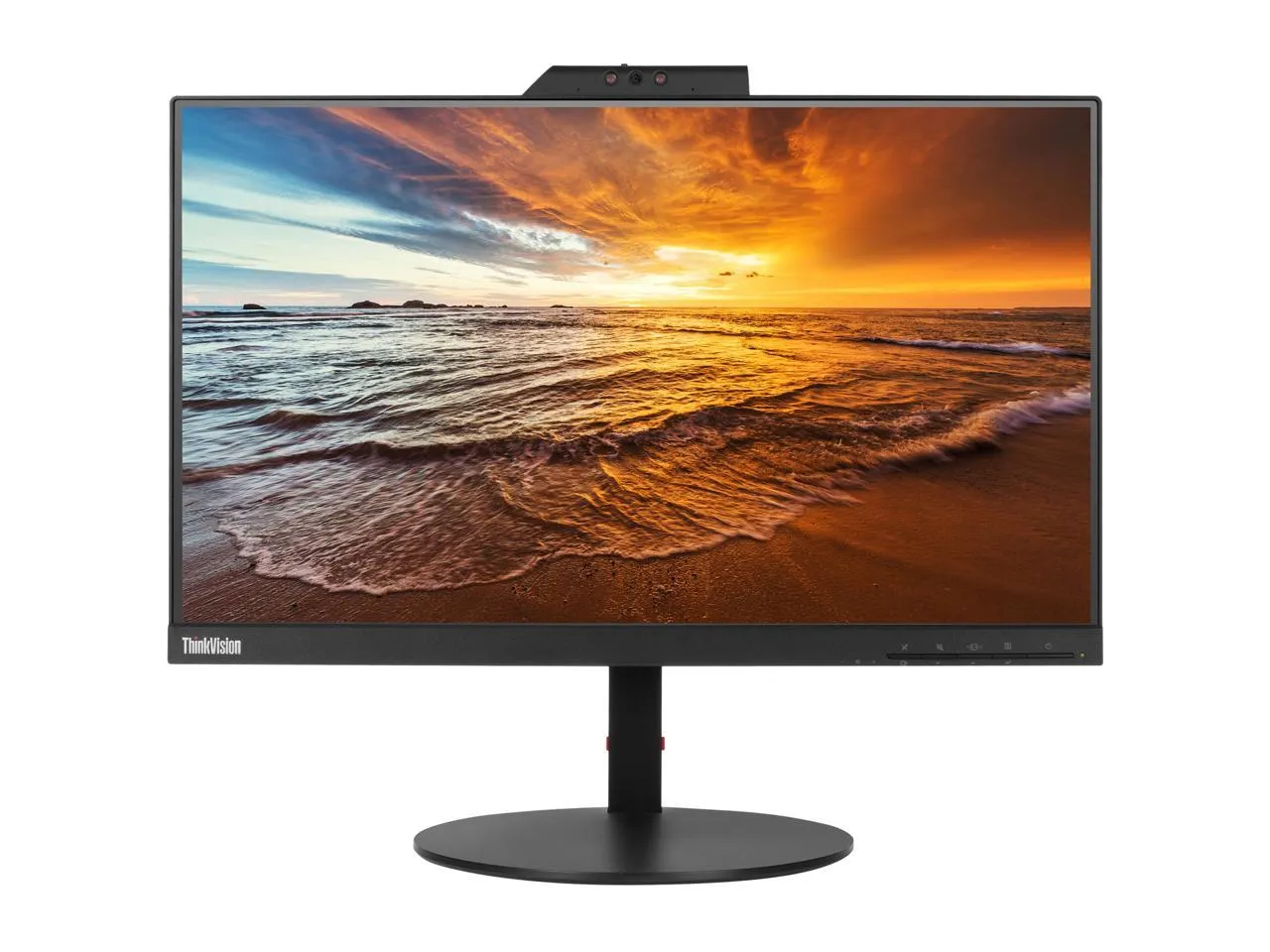

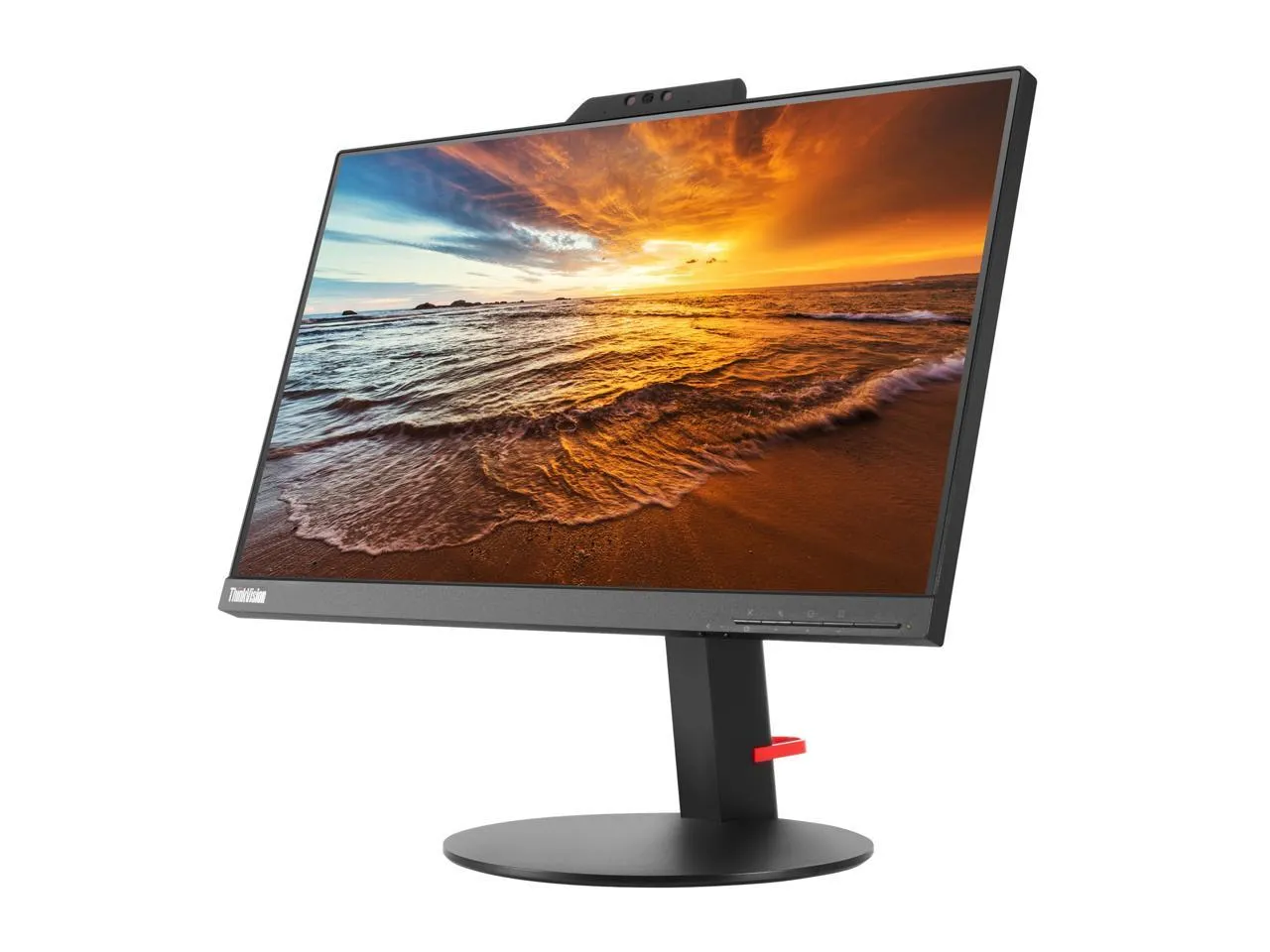

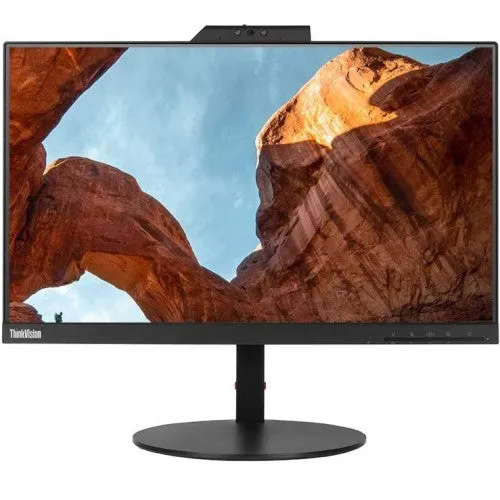

- Best-in-class VoIP Monitor: 23.8-inch (60.45 cm) FHD IPS Panel; Enjoy display with bright, rich color and near-edgeless IPS panel
- Full range connectivity through intergated webcam with privacy lock, mic, speakers, HDMI 1.4 DisplayPort 1.2 VGA, VESA mount with Fully functional height adjustable stand, Tilt, Swivel, Pivot

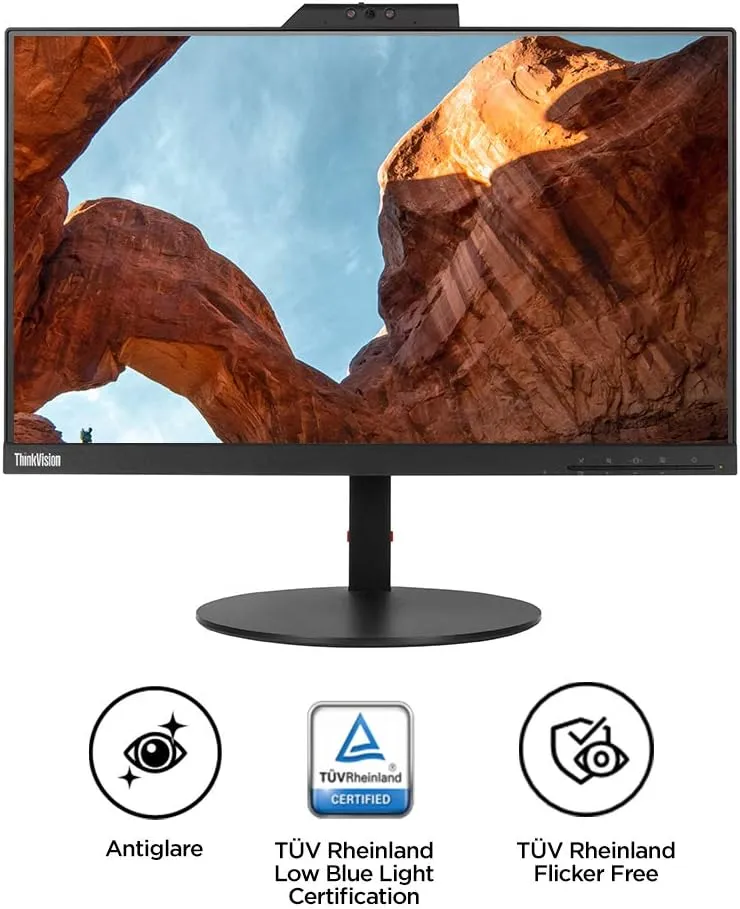

- Optimised visual experience with total eye comfort: 23.8" IPS Panel, WLED Backlight, 1920 x 1080 resolution, 16:9 Aspect ratio, Anti-glare, 178 degree viewing angle, 4ms response time
- Secured sign-in: With Windows Hello supported devices such as smartwatches, smart bracelets or smartphones, you’ll get enhanced security without having to type in a password
- Best suited for users & organizations seeking: 1. an integrated VOIP solution for collaborative work setup 2. optimum energy consumption and minimum environmental impact (7.0 ENERGY STAR Rating)
| General Information |
|---|
| Category | Flat panel displays | | Description | Lenovo ThinkVision T22v-10 - LED monitor - 21.5" - 1920 x 1080 Full HD (1080p) - IPS - 250 cd/m² - 1000:1 - 4 ms - HDMI, VGA, DisplayPort - speakers - black - for ThinkBook 14; ThinkCentre M715q (2nd Gen); M75; ThinkPad E14; E15; L13 Yoga; T490; X390 | | Manufacturer | Lenovo | | MSRP | $360.00 | | UNSPSC | 43211902 | | Main Specifications |
|---|
| Dimensions & Weight / Depth | 25.91 cm | | Dimensions & Weight / Height | 48.58 cm | | Dimensions & Weight / Weight | 4.61 kg | | Dimensions & Weight / Width | 48.97 cm | | Display / Diagonal Size | 21.5 in | | Display / Diagonal Size (metric) | 54.6 cm | | Display / Interface | - DisplayPort
- HDMI
- VGA (HD-15)
| | Display / Native Resolution | 1920 x 1080 | | Display / Pixel Pitch | 0.248 mm | | Display / Type | LED-backlit LCD monitor | | Header / Brand | Lenovo | | Header / Localization | English | | Image Brightness | 250 cd/m² | | Input Device / Type | Microphone | | Miscellaneous / Compliant Standards | - DDC-2B/CI
- FCC Class B certified
- ISO 9241-307
- RoHS
- WEEE
| | Miscellaneous / Product Color | Black | | Packaged Quantity | 1 | | Service & Support / Type | 3-year warranty | | System Requirements / OS Required | Microsoft Windows 7 / 10 | | Audio |
|---|
| Type | Speakers - stereo | | Compatibility Information |
|---|
| Designed For | - Lenovo ThinkBook 14s-IML 20RS
- Lenovo ThinkCentre M715q (2nd Gen) 10VK
- Lenovo ThinkCentre M75q-1 11A4, 11A5
- Lenovo ThinkCentre M75s-1 11AA, 11AV
- Lenovo ThinkCentre M90n-1 IoT 11AJ
- Lenovo ThinkPad E14 20RB
- Lenovo ThinkPad E15 20RE
- Lenovo ThinkPad L13 Yoga 20R5, 20R6
- Lenovo ThinkPad T490 20RX, 20RY
- Lenovo ThinkPad X1 Carbon (7th Gen) 20R2
- Lenovo ThinkPad X1 Yoga (4th Gen) 20SB
- Lenovo ThinkPad X390 20SC, 20SD
| | Connectivity |
|---|
| Interfaces | - DisplayPort (HDCP)
- HDMI (HD-15)
- VGA
- USB 3.0 upstream (Type B)
- 2 x USB 3.0 downstream
- Audio line-in
- Audio line-out
| | Environmental Parameters |
|---|
| Humidity Range Operating | 10 - 80% | | Max Operating Temperature | 40 °C | | Min Operating Temperature | 0 °C | | Environmental Standards |
|---|
| ENERGY STAR Certified | Yes | | General |
|---|

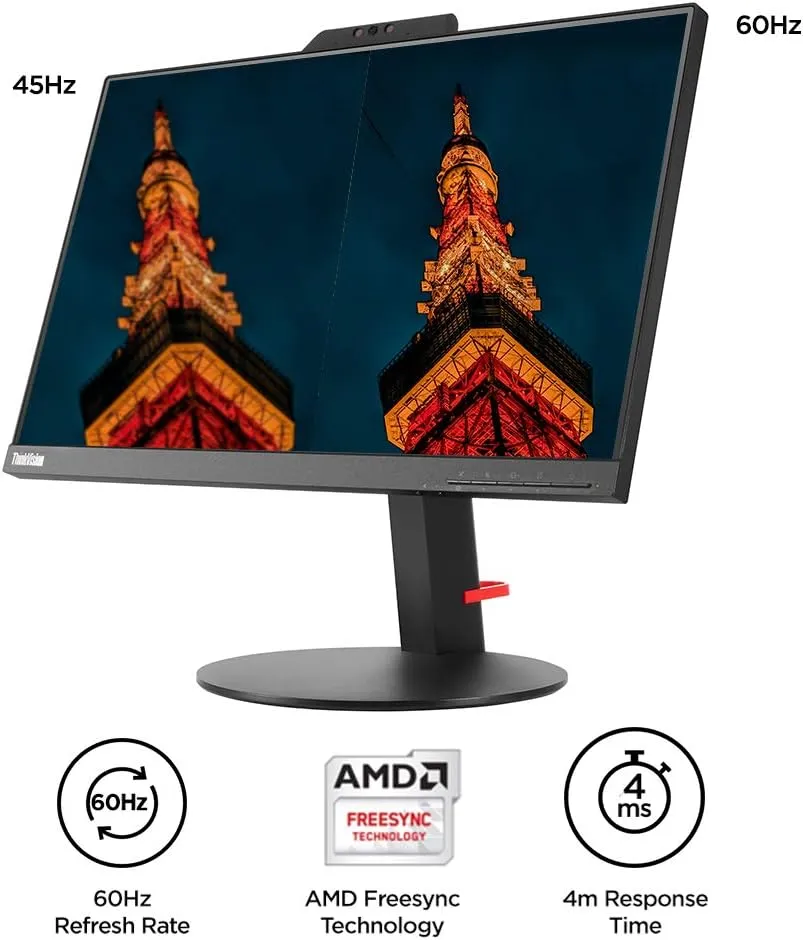

| Aspect Ratio | 16:9 | | Backlight Technology | WLED | | Brightness | 250 cd/m² | | Built-in Devices | USB 3.0 hub, FHD IR camera | | Color | Black | | Color Gamut | 72% | | Contrast Ratio | 1000:1 | | Diagonal Size | 21.5" | | Dimensions (WxDxH) | 48.97 cm x 25.91 cm x 48.58 cm | | Display Type | LED-backlit LCD monitor / TFT active matrix | | Horizontal Refresh Rate | 30 - 81 kHz | | Horizontal Viewing Angle | 89 / -89 | | Native Resolution | Full HD (1080p) 1920 x 1080 | | Panel Type | IPS | | Pixel Per Inch | 102 | | Pixel Pitch | 0.248 mm | | Response Time | 4 ms (extreme), 6 ms (typical) | | Vertical Refresh Rate | 50 - 75 Hz | | Vertical Viewing Angle | 89 / -89 | | Weight | 4.61 kg | | Input |
|---|
| Type | Microphone | | Manufacturer Warranty |
|---|
| Service & Support | - Limited warranty - replacement - 3 years
- Limited warranty - backlight - 3 years
| | Mechanical |
|---|

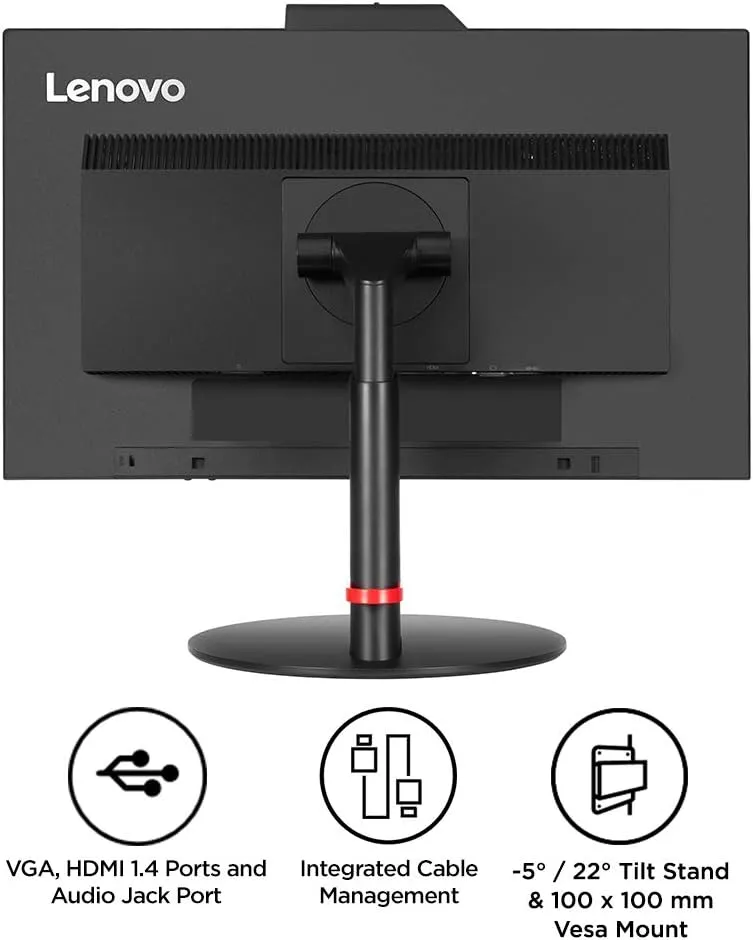

| Display Position Adjustments | Height, pivot (rotation), swivel, tilt | | Height Adjustment | 110 mm | | Rotation Angle | 90 | | Swivel Angle | 90 | | Tilt Angle | -5/ 30 | | VESA Mounting Interface | 100 x 100 mm | | Miscellaneous |
|---|
| Cables Included | - 1 x VGA cable - 1.8 m
- 1 x DisplayPort cable - 1.8 m
- 1 x USB cable - 1.8 m
- 1 x HDMI cable - 1.8 m
| | Compliant Standards | FCC Class B certified, RoHS, ISO 9241-307, WEEE, DDC-2B/CI | | Features | Security lock slot (cable lock sold separately) | | Localization | English | | Security Slot Type | Kensington security slot | | Power |
|---|
| Input Voltage | AC 120/230 V (50/60 Hz) | | Power Consumption (Typical) | 18 Watt | | Power Consumption Sleep | 0.5 Watt | | Power Consumption Stand by | 0.5 Watt | |
|---|
| |
|
