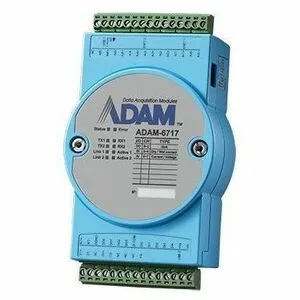

The Advantech IoT I/O Gateway, specifically the ADAM-6700 model, is a state-of-the-art solution tailored for efficient data acquisition and intelligent edge computing. This compact yet powerful gateway is built on a robust Linux-based operating system, allowing it to execute multiple tasks seamlessly at the edge of the network. With an extensive range of I/O capabilities, the ADAM-6700 sets itself apart from competitors by providing a comprehensive suite of features that cater to various industrial requirements.

• Versatile I/O Options: The ADAM-6700 features 8 channels of analog input (current or voltage), 5 channels of digital input, and 4 channels of digital output, facilitating extensive data acquisition and monitoring capabilities.
• Flexible Programming Environment: Users can program the gateway using the Linux C API or the intuitive Node-RED graphic programming environment, making it accessible for both seasoned developers and novices alike.
• Seamless Cloud and Database Access: The intelligent gateway simplifies access to cloud services and databases, ensuring that data can be effortlessly stored, analyzed, and retrieved.
• Advanced Edge Data Analysis: The ADAM-6700 allows for real-time data processing and logic control at the edge, reducing latency and enhancing operational efficiency.
• Comprehensive Data Visualization: Users have the capability to easily create dashboards to visualize data, providing insights that facilitate informed decision-making quickly.

Technical Details of the Advantech IoT I/O Gateway:

• Operating System: Linux-based
• Analog Input: 8 channels (current/voltage)
• Digital Input: 5 channels
• Digital Output: 4 channels
• Interfaces:
• RS-485: 2 ports
• Ethernet: 2 ports
• USB Type-A: 1 port
• USB Micro-B: 1 port

How to Install the Advantech IoT I/O Gateway:

1. Unbox the device and make sure all components are included in the package.
2. Connect the gateway to a power source and ensure it is powered on.
3. Use the Ethernet ports to connect the gateway to your network router or switch for internet access.
4. If utilizing RS-485 connections, wire the appropriate devices to the RS-485 ports.
5. For USB connections, plug your USB devices into the respective USB ports.
6. Once connected, access the gateway’s software interface using a web browser and follow the setup instructions to configure the system.

Frequently Asked Questions:

• What types of devices can be connected to the Advantech IoT I/O Gateway? The gateway can connect to a variety of sensors, actuators, and other devices compatible with its input and output options, including analog and digital signals.
• Is programming knowledge required to use the ADAM-6700? While basic programming knowledge can be beneficial, the Node-RED environment allows users to create applications visually, making it suitable for users of all skill levels.
• Can the gateway be used in outdoor environments? The ADAM-6700 is designed for industrial applications; however, it is recommended to use appropriate enclosures for outdoor installations to protect against environmental conditions.
• What is the maximum distance for RS-485 connections? The maximum distance for RS-485 communication is typically up to 1200 meters, depending on the quality of the cable and the speed of the transmission.
• How can I visualize data from the gateway? Data visualization can be easily achieved using the dashboard capabilities provided within the gateway’s software interface, allowing you to create customized visual reports.
